AutoMecca SportsVan
By Scott McMillan
The summer of '72 saw the
cover of DB&HVWs graced with "The Box," the
 ultimate extension of the
mini-van concept. Here was a unit that bolted to
 the standard VW pan and
transformed it into a 21st century multi-use
 vehicle. Unfortunately,
the new company was beset with the problems all
 new companies face, and
for a while, it appeared as if "The Box" was going
 to be still-born.
 Eventually the entire company
was reorganized, and a few cars rolled
 down the street, and into
the garages of happy owners. All of this took
 quite a bit of time, and
during the ensuing five years since DB&HVWs first
 reported on "The Box," fewer
than 35 cars were produced. Although Boxes
 were not exactly crowding
the freeways, the public was still hot to own a
 Box of it's own and each
month brought inquiries drifting in to DB&HVWs
 from prospective purchasers.
 Well, "The Box" is back in
business, and if you were one of those folks
 who were turned on by it
back in 1972, now is the time to order one.
 AutoMecca Industries in
Chatsworth, California, has picked up where the
 former company left off
and, as you are reading this, is producing the
 Roamer SportsVan, the now
renamed Box.
 Mechanically the Roamer SportsVan
is a Volkswagen, and it's engine can
 be as wild of as stock as
the customer chooses. Generally, the
 performance of the SportsVan
is better than a stock bug because the body
 presents a considerable
weight savings over the stamped steel unit from
 Wolfsburg. Better mileage
is also to be expected, due as much to the better
 aerodynamics of the Roamer
SportsVan as to the reduction in weight the
 engine is asked to haul
around. Suspension is also VW, and the handling
 tricks used to upgrade the
roadability of the basic bug also benefit the
 SportsVan.
 The body of the Roamer SportsVan
has been called unique, and that it is.
 Overall, the body is just
one inch longer than the VW pan it attaches to, but
 it provides a whopping eight
inches more in interior elbowroom. Because
 of its box-like configuration
interior space is also way, way up over stock.
 The body is assembled from
eleven different fiberglass component
 modules, and can be tailored
to the individual's least whim or desire.
 Exterior body color can either
be mixed in to the gel coat of the initial 'glass
 lay-up (color choice is
almost totally unlimited, and fabrics could be
 utilized a la skateboards
if you desire something in plaids, paisleys, or
 floral prints), or the SportsVan
can be painted. Again, as with gel coat
 coloring, the only limiting
factor would be imagination or budget. But what
 ever finish is decided on,
the Roamer SportsVan wears it well. Color
 combinations already rumbling
down the road range from formal black, to
 two-and three-and even four-toned
paint jobs, complete with murals to
 decorate the broad flanks
of some of the more custom Boxes.
 Interiors again reflect the
custom tastes of the individual, and most go
 beyond the use of stock
VW buckets for the front. In the SportsVans
 inspected at the factory,
all were fitted with the excellent Hunter reclining
 bucket seats, and the choice
of interior fabrics and colors was enough to
 dazzle the modern design
editor of Better Homes and Gardens magazine.
 There can be no doubt about
it, the Roamer SportsVan is a custom item,
 whether your tastes run
to top grade leather or crushed velvet, the
 SportsVan can be tailored
to your individual requirements. Rear seating is
 provided by a deep-seated,
plush couch that wraps around the rear of the
 vehicle, and provides comfortable
seating for two six-footers, with
 occasional seating for two
more slightly smaller folks on the side-facing
 cushion behind the drivers'
seat.
 The Roamer SportsVan has
been designed from the ground up as a safety
 vehicle. It makes use of
special energy absorbing front and rear bumpers
 that are custom made by
AutoMecca. These very attractive units are
 laminated fiberglass and
industrial plywood, attached to special energy
 absorbing mounting brackets.
That they are effective was brought
 graphically to our attention
when a SportsVan was accidentally backed
 into a wall at the factory,
neither van or bumper suffered any apparent
 damage, while the cinder
block wall definitely came out on the short end.
 Further safety considerations
have gone into the interior design of the
 SportsVan. The front passengers
sit well back from the windshield and are
 further protected by a well-padded
knee bar restraint. All switches knobs
 and control devices are
located in the body panel to the left of the steering
 wheel. This placement eliminates
the driver "fumbling" while on the road.
 The body hull itself incorporates
box beam construction, with integral
 rollbar, this, along with
the resilient strength inherent in fiberglass
 construction, gives the
SportsVan excellent crash survivability, To further
 improve body rigidity, the

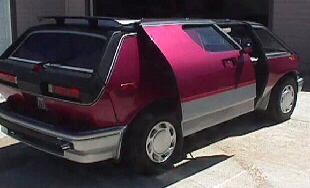

vehicle makes use of only one door, a whopping
 four foot opening in the
passenger side of the structure that allows easy
 in-out access, without undermining
basic body strength. In the event that
 someone should lay a SportsVan
on it's door side, all occupants can easily
 scramble to safety through
the almost nine square feet of opening
 provided by the 36-in.x32-in.
Sunroof. All in all a very well thought out
 design.
 The Roamer SportsVan is a
custom car, and like all custom cars production
 is limited. At this writing
AutoMecca is producing twenty SportsVans per
 month. This works out to
about five a week, or roughly the same number of
 cars as produced each week
by, say, Austin Martin. The big difference is in
 price, and option availability.
There is literally no option (maybe a
 swimming pool) that can
not be built into an AutoMecca SportsVan. Such
 is not the case even with
Rolls-Royce, whose production figures look like
 the output from Ford when
placed next to those of the Box. A top of the
 line Rolls-Royce would set
you back a cool 100 G's, but it's doubtful that
 the factory would decorate
the haunches of the car with a delicate lace
 paint job, but for less
than $6000, AutoMecca will supply you with a ready
 to go SportsVan built to
your specs.
 That's right, for about 1/20th
of the cost of a production Rolls, the owner of
 a Roamer SportsVan gets
what amounts to a total custom car. According to
 the price information made
available from AutoMecca, they will convert a
 customer's VW to a Deluxe
SportsVan for $5,265. Now, if you figure that
 your running gear will probably
cost about $600, the total price of a custom
 Roamer SportsVan is still
about a thousand dollars less than a new VW
 camper. Not bad in these
days of the mini-dollar.
 The SportsVan is also available
as a kit, ready to bolt down on your
 chassis. Because the body
section is so sophisticated, it arrives
 pre-assembled, and with
the door installed. The standard body kit includes
 the complete shell, fully
bonded, riveted and painted (or gel coated). All
 window glass is installed,
including windshield, and sliding side windows.
 Of course, safety glass
is used throughout. As previously mentioned, the
 door is installed and carefully
fitted to insure proper fit and seal. All
 necessary holes are cut
for the gauges, and the wiring harness is laid in.
 The kit makes use of a number
of stock VW electrical components such as
 switches, wiper motor, headlights,
etc. Other parts come from the VW body.
 The kit includes virtually
all components necessary to build a SportsVan
 (even the carpeting, seats,
and little items like the rear license plate light)
 and home construction time
is generally on the order of a few days, not
 months.
 A Deluxe kit is also available,
and it is ready to bolt onto your chassis.
 Everything is fitted and
pre tested at the factory, and the car is totally
 detailed before shipping.
When the giant crate arrives at your home, almost
 as much time is consumed
in unpacking as fitting. With a VW pan in
 reasonably straight condition
fitting the body could be accomplished in a
 single day. Included in
the deluxe kit are all gauges and a special steering
 wheel.
 In addition to the two kits
just described, AutoMecca also sells an
 unpainted "bare-bones" kit
which is intended for the home builder who
 feels he can cut costs with
a little junkyarding. By eliminating the two front
 seats, rear seat upholstery,
all carpeting, the headliner, the taillight
 assemblies, the side lights,
dome lights, parking lights, license plate light,
 stainless steel windshield
trim and the two rear wheel well sets, the price
 can be brought down from
$3,950 to just about $2,800. Price for the deluxe
 kit, ready to mount on your
own chassis is $4,875.
 AutoMecca also offers a comprehensive
list of options including AM/FM
 stereo radio with 8-track
($195), a variety of side portholes ($125), air
 conditioning, a specially
designed ice chest and numerous other items,
 Further, they will arrange
for customers to purchase VW chassis if they
 don't already have one,
will allow "trade-ins" and allowances on VW
 Bodies and components depending
on year and condition.
 Now in the planning stages,
AutoMecca has just about finalized the design
 of their Baja Box, a SportsVan
designed for rugged off road use. That the
 car is up to that sort of
punishment was shown at Riverside last year when
 a stock SportsVan was entered
in the SCORE World Championships and
 came in a credible seventh
in its class. For those who's off-roading is a
 little more tame, the Roamer
SportsVan can be mounted on the Thing
 chassis (thus improving
ground clearance) and converted into a
 campmobile supreme.
 Starting a new business isn't
easy. Starting a new automobile company is
 almost impossible. History
is littered with cars like Packard, Studebaker,
 and Kaiser. Cars which just
didn't survive in the market. Well, despite
 overwhelming odds, the Box
has survived. Its first five years were as
 stormy as any in the annals
of automotive history. But now the company is
 on a firm footing, and its
top management has a clear idea of what they
 expect to do. Company President
Mike Hansen summed it up recently.
 We've learned a lot since
our first attempt," he says. " AutoMecca as
 pre-produced 32 units and
tested the vehicle thoroughly, simplified the
 production, and restructured
the market plan. More realistic goals - that's
 the biggest difference this
time." Says Hansen. "We're not trying to start a
 West Coast auto industry-just
a profitable business."
 Now that cars are available,
and orders are rolling in, off road racer and
 company president Hansen
will get his wish. The Box, now officially
 renamed the AutoMecca Roamer
SportsVan, is back. Not only that, but it is
 healthier than ever before.
Enthusiasts can now shout Hallelujah, and
 start lining up to buy one,
because The Box is back.
    |
